Description

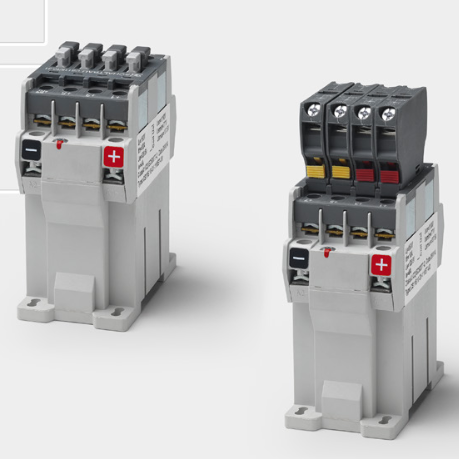

“This multi-pole AC or DC contactor of up to 800 V can switch and carry currents up to 30 A. Different combinations are possible for the 4 main contact pairs: 4 NO, 3 NO/1 NC or 2 NO/2 NC. Optionally, 1 to 4 auxiliary contacts can be pushed on (NC/NO contacts) which report the switch state of the main contacts to different systems.
As a DC contactor, the CS assumes control tasks in battery networks. The AC version can also switch AC voltages. Typical applications are the switching on and off of devices or subsystems, the mutual locking of switch circuits or the activation of power contactors. In a voltage range of up to 800 V DC, it can also function as a pre-charging contactor or discharge contactor.”
“Permanent-magnetic blowout for high DC power ranges
Main contacts as NO/NC contact
1–4 auxiliary switches (NC or NO)
Applications in battery networks up to 800 V DC”
